Core Technology Quick Read: Agricultural Power Dynamics
Australian farming conditions impose unique structural stresses. Equipment must endure extreme temperature fluctuations, UV degradation of safety guards, and high-impact shock loads from dense vegetation clearing. The T Series utilizes high-yield cold-drawn steel tubing, coupled with precision-forged yokes, to deliver a unified torque solution. Every unit strictly adheres to AS/NZS compliance for rotational machinery shielding, ensuring operator safety without compromising on power density.
Queensland Extreme Condition Practical Study
Engineer’s Field Notes: Overcoming Silicate Abrasion in Slasher Applications
“In our 12 years of servicing heavy-duty slashers across the Darling Downs region, we documented a recurring failure mode: standard u-joints were failing prematurely. The combination of 40°C+ ambient temperatures and highly abrasive silicate dust was compromising standard nitrile seals, leading to grease contamination and rapid needle bearing destruction. Based on this extensive field data, EVER-POWER re-engineered the universal joint interface for the T Series. We implemented a triple-lip Viton seal system and expanded the internal grease reservoir by 18%. Following a 24-month field trial on a 200HP tractor running a 15-foot batwing slasher, the T Series exhibited zero thermal degradation and maintained 100% seal integrity, extending the maintenance interval from 50 hours to 250 hours.”
T Series Parameters & Specifications
Precise engineering requires exact data. The following matrix details the 14 critical kinematic and structural parameters of the T Series, designed to match the specific torque and horsepower requirements of Tier 4 and Tier 5 agricultural tractors.
| Series | Cross | Joint simple | Splined yoke |
Tube yoke | Tube | |||
|---|---|---|---|---|---|---|---|---|
| Outer | Inner | Outer | Inner | Outer | Inner | |||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| T1 | 1.01 (22*54) |
1.0505B+1.01 +1.06 |
1.0505B+1.01 +1.07 |
1.0505B | 1.06 | 1.07 | 1.03 | 1.04 |
| T2 | 2.01 (23.8*61.3) |
2.0505B+2.01 +2.06 |
2.0505B+2.01 +2.07 |
2.0505B | 2.06 | 2.07 | 2.03 | 2.04 |
| T3 | 3.01 (27*70) |
3.0505B+3.01 +3.06 |
3.0505B+3.01 +3.07 |
3.0505B | 3.06 | 3.07 | 3.03 | 3.04 |
| T4 | 4.01 (27*74.6) |
4.0505B+4.01 +4.06 |
4.0505B+4.01 +4.07 |
4.0505B | 4.06 | 4.07 | 4.03 | 4.04 |
| T5 | 5.01 (30.2*80) |
5.0505B+5.01 +5.06 |
5.0505B+5.01 +5.07 |
5.0505B | 5.06 | 5.07 | 5.03 | 5.04 |
| T6 | 6.01 (30.2*92) |
6.0505B+6.01 +6.06 |
6.0505B+6.01 +6.07 |
6.0505B | 6.06 | 6.07 | 6.03 | 6.04 |
| T7 | 7.01 (30.2*106.5) |
7.0505B+7.01 +7.06 |
7.0505B+7.01 +7.07 |
7.0505B | 7.06 | 7.07 | 7.03 | 7.04 |
| T7N | 7N.01 (35*94) |
7N.0505B+7N.01 +7N.06 |
7N.0505B+7N.01 +7N.07 |
7N.0505B | 7N.06 | 7N.07 | 7N.03 | 7N.04 |
| T8 | 8.01 (35*106.5) |
8.0505B+8.01 +8.06 |
8.0505B+8.01 +8.07 |
8.0505B | 8.06 | 8.07 | 8.03 | 8.04 |
| T38 | 38.01 (38*105.6) |
38.0505B+38.01 +38.06 |
38.0505B+38.01 +38.07 |
38.0505B | 38.06 | 38.07 | 38.03 | 38.04 |
| T9 | 9.01 (41*108) |
9.0505B+9.01 +9.06 |
9.0505B+9.01 +9.07 |
9.0505B | 9.06 | 9.07 | 9.03 | 9.04 |
| T10 | 10.01 (41*118) |
10.0505B+10.01 +10.06 |
10.0505B+10.01 +10.07 |
10.0505B | 10.06 | 10.07 | 10.03 | 10.04 |
| Series | Operating torque | MP (NM) |
|||||
|---|---|---|---|---|---|---|---|
| 540tr./min | 1000tr./min | ||||||
| Kw | Pk | Nm | Kw | Pk | Nm | ||
| T1 | 12 | 16 | 210 | 18 | 25 | 172 | 320 |
| T2 | 15 | 21 | 270 | 23 | 31 | 220 | 450 |
| T3 | 22 | 30 | 390 | 35 | 47 | 330 | 640 |
| T4 | 26 | 35 | 460 | 40 | 55 | 380 | 780 |
| T5 | 35 | 47 | 620 | 54 | 74 | 520 | 1050 |
| T6 | 47 | 64 | 830 | 74 | 100 | 710 | 1450 |
| T7 | 55 | 75 | 970 | 87 | 118 | 830 | 1800 |
| T7N | 55 | 75 | 970 | 87 | 118 | 830 | 1800 |
| T8 | 70 | 95 | 1240 | 110 | 150 | 1050 | 2250 |
| T38 | 78 | 105 | 1380 | 123 | 166 | 1175 | 2500 |
| T9 | 88 | 120 | 1560 | 140 | 190 | 1340 | 2800 |
| T10 | 106 | 145 | 1905 | 170 | 230 | 1650 | 3500 |
Global Standard Compatibility
Procurement teams and agricultural maintenance technicians require components that drop seamlessly into existing fleet ecosystems. The T Series is dimensionally and mechanically engineered to align with global agricultural transmission standards.
LEGAL & COMPATIBILITY DISCLAIMER: Our PTO systems are engineered as a perfect replacement for the drive units found on Comer™ and GKN™ Walterscheid™ machines. (Note: All manufacturer names, symbols, and descriptions are used for reference purposes only, and it is not implied that any part listed is the product of these manufacturers. EVER-POWER is an independent manufacturer.)
Whether you are operating Italian-designed power harrows or German-engineered forage harvesters, the cross-reference capabilities of the T Series ensure rapid field replacement. The yokes and splines are precision-broached to match exact OEM tolerances, eliminating the vibration harmonics often associated with mismatched aftermarket parts.
Driveline Sizing & Selection Protocol
Incorrect sizing of a power take-off shaft leads to catastrophic mechanical failure, jeopardizing both equipment and operator safety. Follow this engineering matrix to determine the precise T Series configuration for your implement.
| Selection Step | Engineering Measurement | Practical Application Insight |
|---|---|---|
| Step 1: Determine Input Power | Tractor HP rating at the PTO output (Not engine HP). | A 100HP tractor requires at least a Size 6 or Size 8 shaft to prevent tube twisting during peak torque loads. |
| Step 2: Measure Cross Kit | Cap diameter (D) x End-to-end length (L). | Crucial for identifying the correct series class. E.g., 30.2mm x 92mm confirms a Size 6 driveline. |
| Step 3: Define Overall Length | Measure fully compressed (Closed Length) end-to-end. | Always specify the closed length. The shaft must have at least 1/3 overlap during maximum extension to maintain structural integrity. |
| Step 4: Identify Spline Profiles | Number of splines and nominal diameter at both ends. | Standard is 1-3/8″ 6-spline for 540 RPM. High-output implements often use 1-3/4″ 20-spline (1000 RPM). |
| Step 5: Select Safety Device | Shear bolt, Slip clutch, or Overrunning clutch. | Rotary tillers in rocky soil mandate friction slip clutches. Slashers benefit from overrunning clutches to protect tractor transmissions. |
Field Troubleshooting & Resolution
Operational downtime during critical harvest or planting windows incurs severe economic losses. This diagnostic guide addresses the ten most frequent transmission anomalies encountered in agricultural environments.

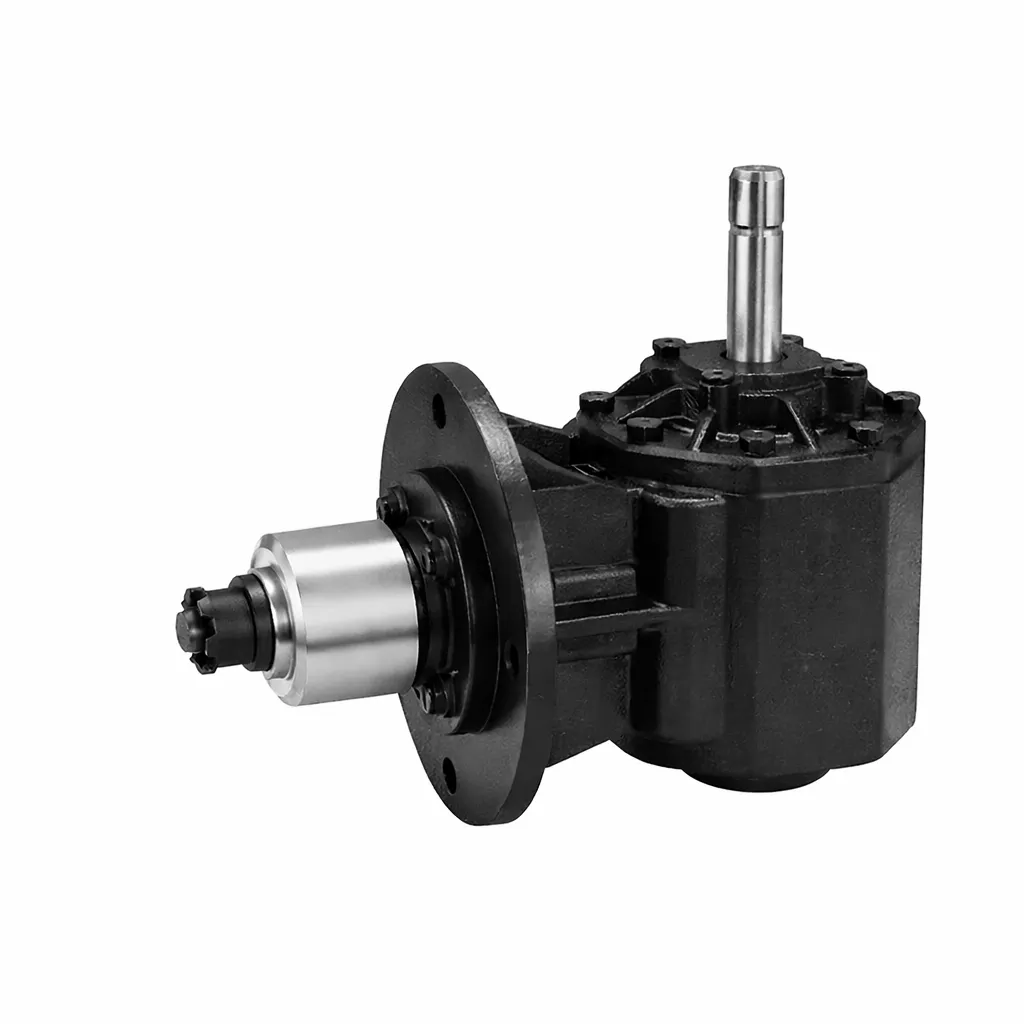

Integrated Mechanical Solutions: Agricultural Gearboxes & Components
The transmission of power does not terminate at the end of the driveline. The efficiency, longevity, and safety of an agricultural implement depend entirely on the seamless integration between the pto drive shaft and the receiving agricultural gearbox. At EVER-POWER, our engineering philosophy revolves around treating the driveline and the gearbox as a single, unified kinetic ecosystem. This holistic approach prevents torque mismatch, harmonic resonance, and premature bearing failure that plague piecemeal mechanical assemblies.
The Symbiosis of Shafts and Gearboxes
When a tractor outputs power, the drive shaft carries the rotational energy, but it is the agricultural gearbox that transforms this kinetic energy into usable work. The gearbox alters the rotational speed, multiplies the torque, and changes the direction of the axis of rotation (typically by 90 degrees using bevel gears). If the PTO shaft delivers power unevenly due to poor balancing or worn joints, the input shaft of the gearbox suffers extreme radial shock loads. This radial force destroys the input oil seals, leading to lubricant loss, subsequent thermal escalation, and catastrophic gear tooth failure. By utilizing a precisely balanced EVER-POWER T Series shaft in conjunction with our heavily reinforced gearboxes, operators effectively neutralize these destructive parasitic forces.
Deep-Dive into Gearbox Metallurgy and Construction
Manufacturing an agricultural gearbox capable of surviving the harsh realities of Australian farming—such as clearing dense Mulga scrub in the outback or continuous rotary tilling in the hard-packed clay of the Riverina—requires uncompromising metallurgical standards. Our gear housings are cast from high-grade nodular cast iron (ductile iron), which possesses a higher tensile strength and impact resistance compared to standard grey cast iron. This ensures the housing will not fracture under high shock loads, such as a slasher blade striking a hidden stump.
The internal gears are the heart of the system. We utilize forged alloy steel (such as 20CrMnTi), which undergoes a rigorous carburizing and quenching heat treatment process. This creates a gear tooth with an extremely hard, wear-resistant outer case (HRC 58-62) while maintaining a tough, ductile core capable of absorbing shock without shattering. The gear teeth are CNC lapped to ensure maximum contact area, which significantly reduces operational noise and localized thermal buildup.
Specific Gearbox Applications in Australian Agriculture
1. Rotary Slasher & Flail Mower Gearboxes
Slashers represent one of the most brutal applications for mechanical transmission. The momentum of the heavy cutting blades creates massive kinetic inertia. Our slasher gearboxes feature oversized tapered roller bearings on the output shaft to handle the intense downward axial thrust and lateral shock loads. They are perfectly paired with a T Series driveline equipped with a friction slip clutch and an overrunning mechanism, protecting the tractor’s internal PTO brake when the clutch is depressed.
2. Post Hole Digger Gearboxes
Used extensively in fencing across massive cattle stations, post hole diggers require extreme torque multiplication to drive augers through compacted soil and limestone. These gearboxes typically utilize a high-ratio bevel gear set. The input power must be delivered smoothly; thus, the connected PTO shaft is frequently fitted with a heavy-duty shear bolt yoke. If the auger catches on bedrock, the bolt shears instantly, severing the kinetic connection before the gearbox casing splits.
3. Rotary Tiller Gearboxes
Tilling involves continuous, high-vibration loads. The gearbox sits directly in the dust zone, requiring multi-lip labyrinth seals to prevent soil ingress. Our tiller gearboxes are engineered for continuous 100% duty cycles, featuring enhanced oil capacities and ribbed housing designs for superior thermal dissipation. Combining this with a T Series shaft featuring a wide-angle CV joint allows the operator to lift the tiller at headlands without disengaging the PTO, drastically improving field efficiency.
Vital PTO Shaft Components and Spares
Maintenance is an inevitable reality of mechanized agriculture. We maintain a comprehensive inventory of precision-engineered replacement parts designed to restore drivelines to factory specifications immediately.
- Universal Joint Cross Kits: Forged crosses featuring centralized grease zerks for easy access. Roller bearing cups are precision-ground for zero-play fitment within the yokes.
- Profile Tubing: Available in triangular, lemon, and heavy-wall star profiles. We supply raw lengths for custom shaft fabrication or repair of bent assemblies.
- Friction Discs & Springs: Non-asbestos, high-coefficient friction linings for slip clutches. Replacement tension springs are calibrated to specific millimeter compressions for exact torque slip ratings.
- Safety Shielding Kits: UV-resistant, impact-proof polymer tubes with heavy-duty nylon bearing rings and retention chains. Replacing a damaged shield is not optional; it is a critical safety and legal requirement under workplace safety standards.
By engineering and manufacturing both the power source driveline and the receiving agricultural gearbox, EVER-POWER provides OEMs and aftermarket clients with a unified, high-reliability mechanical solution that dramatically lowers the total cost of ownership over the lifespan of the machine.
Australian Field Validations
Broadacre Planter Integration
“We run a 60ft air seeder in the WA wheatbelt. The original shafts had excessive vibration leading to hydraulic pump seal failures on the implement. Swapping to the T Series with the heavy-wall star profile eliminated the whip. 40,000 hectares later, the shaft hasn’t missed a beat.”
— David M., Agronomy Operations Manager, Western Australia
Sugarcane Harvester Resilience
“The humidity and constant load of harvesting cane in Far North Queensland destroys inferior metal. The anti-corrosion coating and superior seal design on the T Series cross kits mean we spend less time greasing in the mud and more time harvesting.”
— Trent H., Contract Harvester, Queensland
Dairy Feed Mixer Reliability
“Our TMR mixer wagon requires massive starting torque. The EVER-POWER shaft with the cam clutch handles the engagement smoothly without snapping shear bolts. Excellent build quality, perfectly replaced the OEM part at a fraction of the dealer cost.”
— Sarah K., Dairy Farm Owner, Victoria
Operational Power System Queries
How do I determine the correct length when cutting a new drive shaft to fit my tractor and implement?
Attach the implement to the tractor. Raise or lower the 3-point linkage until the tractor output shaft and implement input shaft are perfectly horizontal to each other (this is the shortest distance). Measure the distance between the locking grooves. Cut equal amounts off both the inner and outer metal tubes, and the plastic shield. Ensure you leave at least 1/3 of the tube length overlapping to prevent the shaft from separating during operation.
Can I replace a shear bolt with a standard high-tensile bolt from the hardware store?
Absolutely not. Shear bolts are metallurgically engineered to fail at a specific torque threshold to protect your tractor’s gearbox. Using a harder bolt (like a Grade 10.9 when a Grade 8.8 is specified) transfers the shock load directly into the internal gears, potentially causing thousands of dollars in transmission damage.
What is the difference between a 540 RPM and a 1000 RPM shaft, and are they interchangeable?
They are strictly not interchangeable. A 540 RPM setup typically uses a 1-3/8″ 6-spline shaft, while a 1000 RPM system uses a 1-3/8″ 21-spline or 1-3/4″ 20-spline. Running a 540 RPM implement at 1000 RPM will cause the implement internal components to rotate twice as fast as designed, leading to immediate catastrophic failure and severe safety hazards.
Why does my slip clutch smoke when I first start my rotary tiller?
If the machine has been sitting idle, rust can fuse the friction plates to the metal hubs, or the spring tension is incorrectly set. Before the season starts, loosen all the springs, intentionally slip the clutch for 3-5 seconds to polish the rust off the plates, and then retighten the springs to the exact millimeter length specified in your engineering manual.
When should I specify a Wide Angle (CV) joint instead of a standard universal joint?
Standard joints induce severe vibrations when the operating angle exceeds 25 degrees. If you operate trailed implements that require sharp turning at the headlands without disengaging the power (such as large balers or trailed sprayers), a CV (Constant Velocity) joint is mandatory. It allows smooth power transmission at angles up to 80 degrees for short durations during maneuvers.

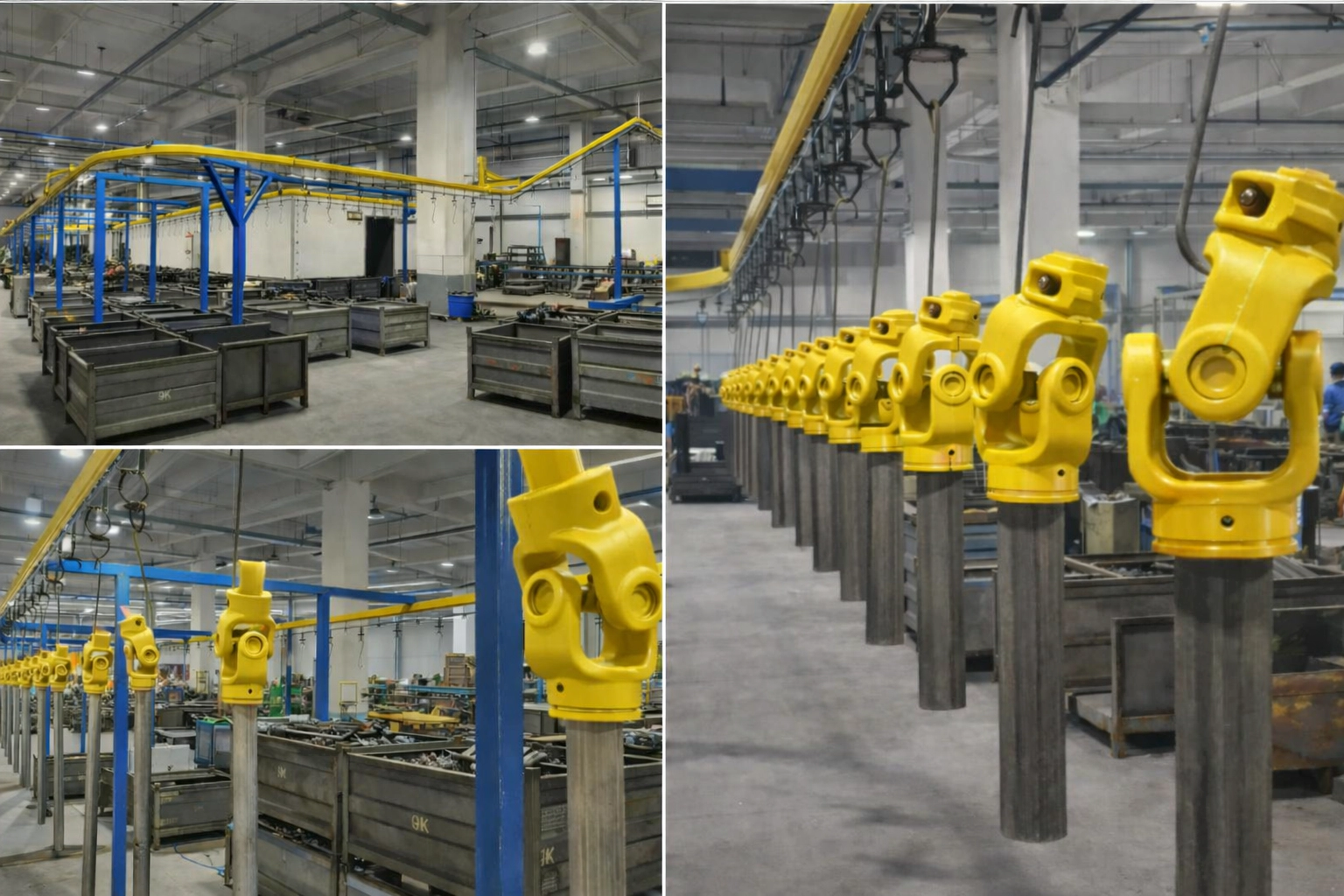

Precision Manufacturing Mastery at EVER-POWER
